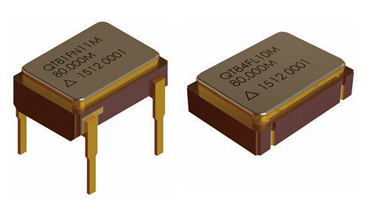

5x7mm帶4點安裝XO晶振QT81F,QS87F,QG85F
發布于：2025-06-12 14:22:30
品牌名稱：Q-TECH
重要參數：
尺寸：5.00 mm × 7.00 mm
邏輯類型：ACMOS、HCMOS、LVCMOS、TTL、LVDS、LVPECL等
工作電壓范圍：1.8 Vdc 至 5.0 Vdc
頻率穩定性：±25 ppm 到 ±450 ppm
| 型號 | 尺寸 （mm） | 市場 | 設備類型 | 邏輯類型 | 電源電壓 | 封裝類型 | 穩定性 | 相位噪聲基底 |
| QT80F, QT81F, QT82F, QT83F, QT84F, QT85F, QT86F, QT87F, QS80F, QS81F, QS82F, QS83F, QS84F, QS85F, QS86F, QS87F, QG80F, QG81F, QG82F, QG83F, QG84F, QG85F, QG86F, QG87F | 5.00 x 7.00 x 2.00 | Military & Avionics | 5x7 w/ 4pt Mount | CMOS, HCMOS, TTL | 1.8 to 5Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin | ±50ppm to ±100ppm | -162 dBc/Hz @ 40MHz |
| QT81, QS81 | 5.00 x 7.00 x 2.00 | High Temp | 5x7 w/ 4pt Mount | CMOS, LVHCMOS, TTL | 1.8 to 5Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin | ±175ppm to ±450ppm | Contact Q-Tech |
| QT86 | 5.00 x 7.00 x 2.00 | High Temp | 5x7 w/ 4pt Mount | CMOS, LVHCMOS, TTL | 1.8 to 5Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin | ±175ppm to ±450ppm | Contact Q-Tech |
| QT80F, QT85F, QT86F, QT87F, QS80F, QS85F, QS86F, QS87F, | 5.00 x 7.00 x 2.00 | Military & Avionics | 5x7 w/ 4pt Mount | LVDS, LVPECL | 2.5 to 3.3Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin | ±50ppm to ±100ppm | -143 dBc/Hz @ 125MHz |
